How to fix a Maxi-Cosi FamilyFix Base

I’ve had a little issue with our MaxiCosi FamilyFix Base not releasing the child seat anymore. Turns out, this is a common problem. Unfortunately, I didn’t find any description on how to really solve it, so here is one.

First of all, there are all sorts of screws on the base. Don’t waste your time trying to open the base from the bottom. There are six screws, two of them to the back which you only see if you remove the cover from the IsoFix bars, and once you’ve removed those screws, you’re still not really closer to opening the base – at least I wasn’t, and I nearly gave up. I then saw these two screws:



IMG_2350

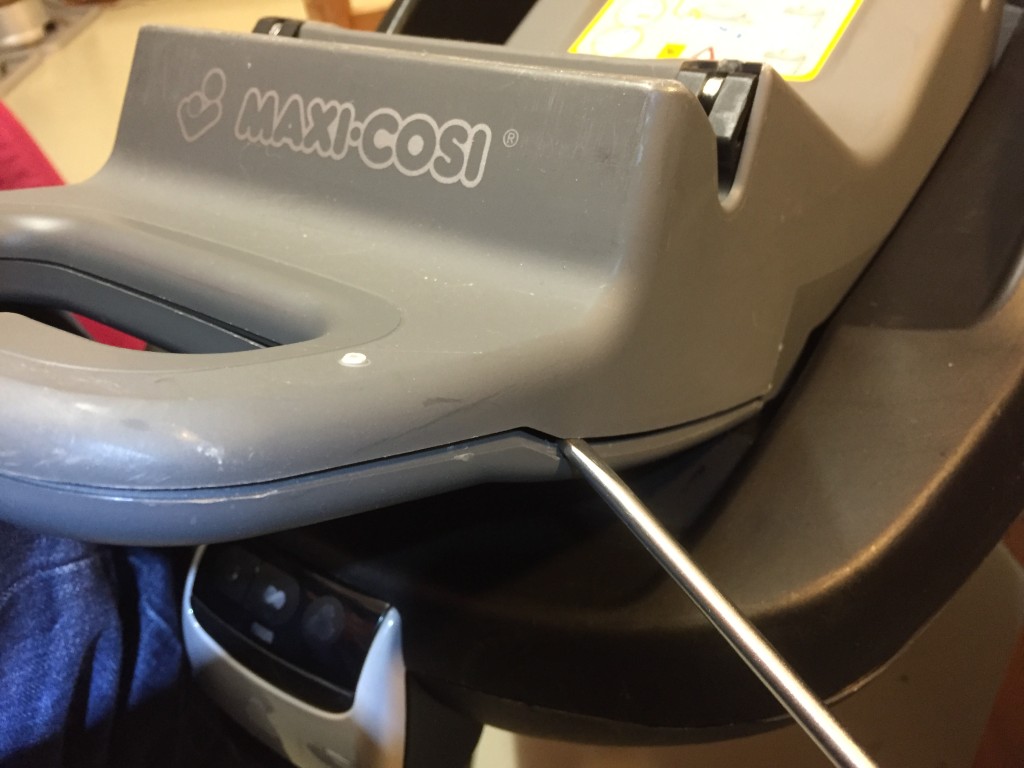

Once you’ve removed them, you can open the base from the top by first inserting a flathead screw driver and cautiously prying open:



IMG_2351

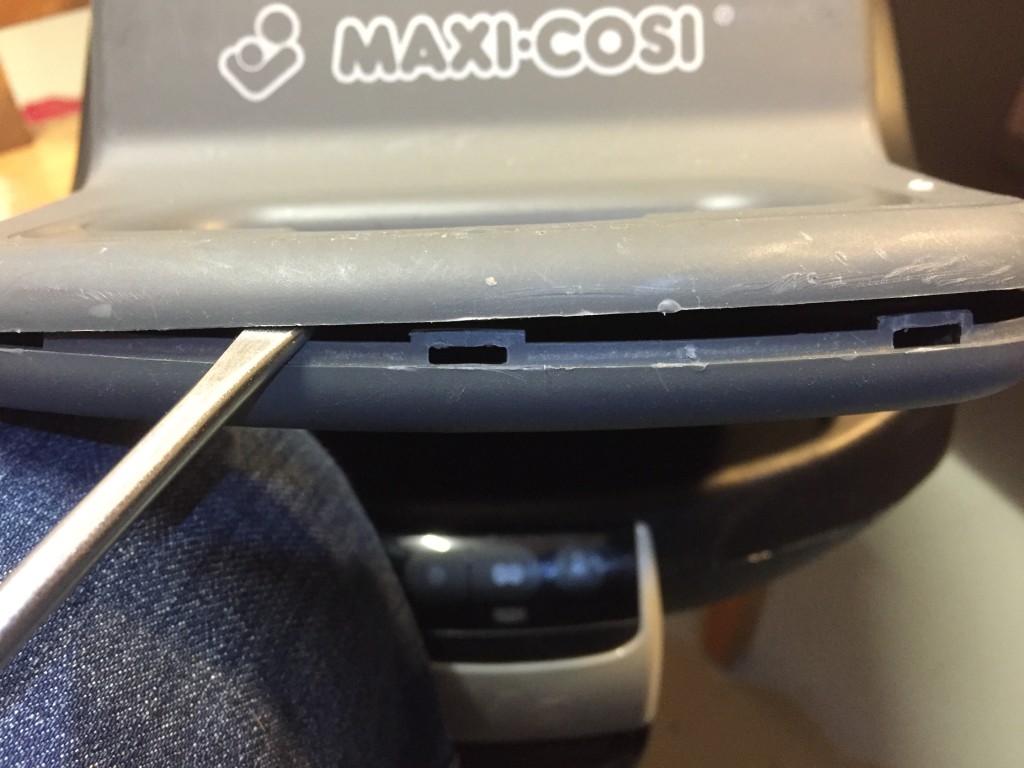

Work your way to the front and carefully unclip these:



IMG_2352

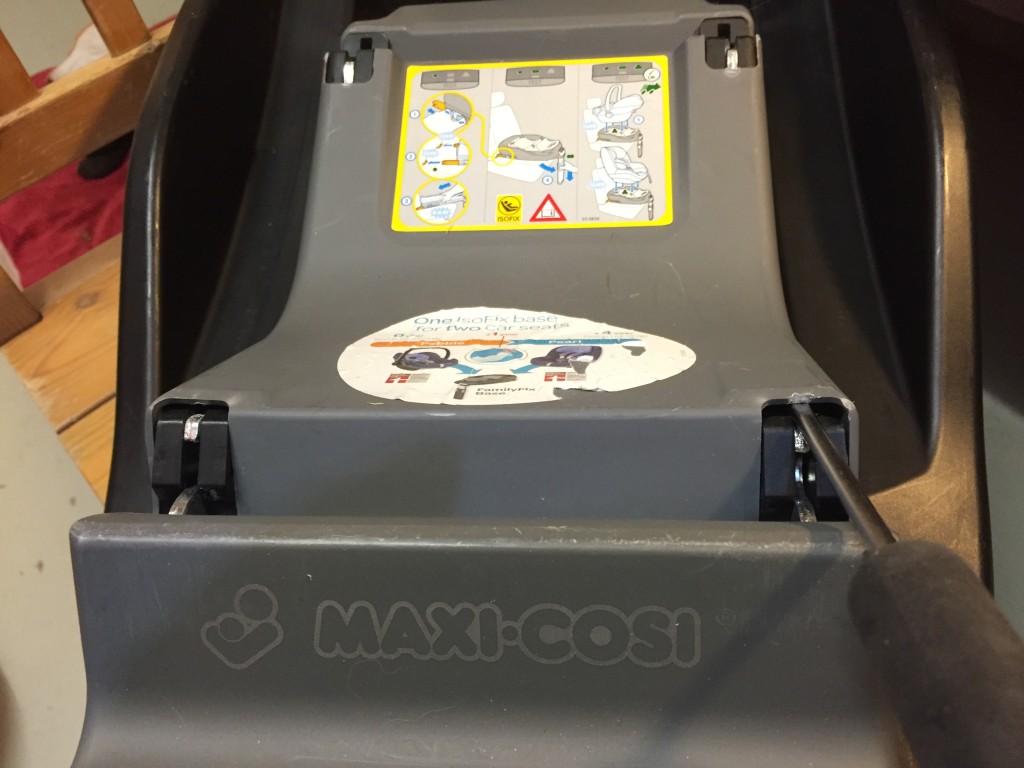

Using your screwdriver as a lever, you can then pry open the base like so (doing that on both sides):



IMG_2354



Eventually, the top of the base comes off:



IMG_2355

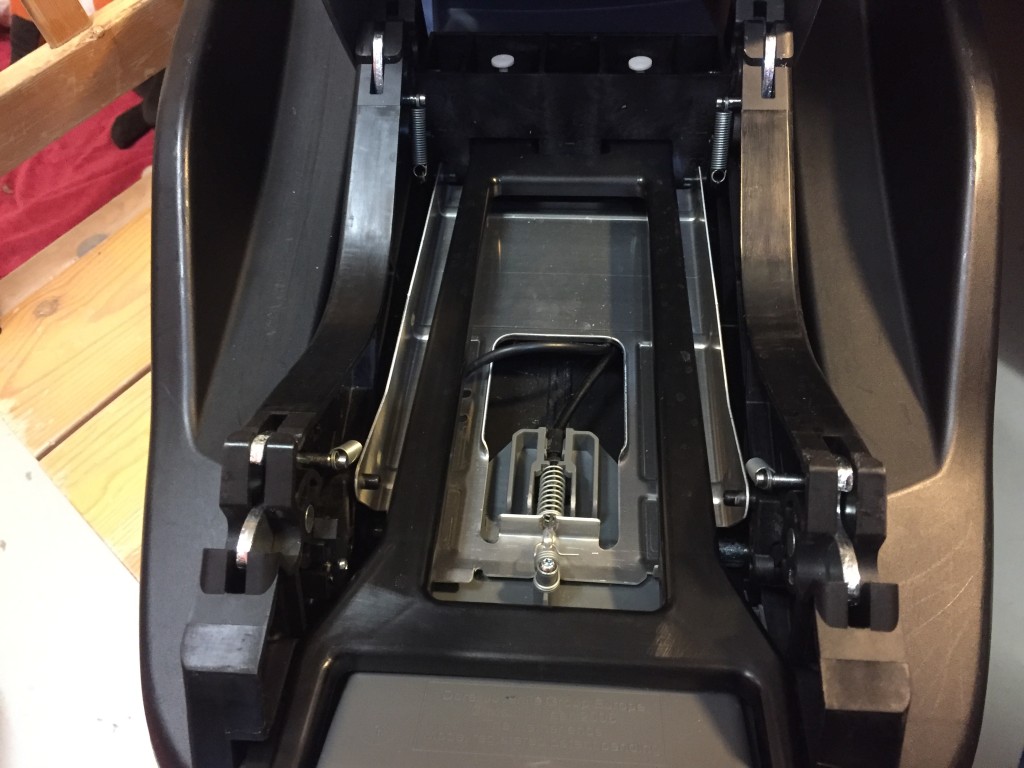

You can now open the cover towards the back:



IMG_2356

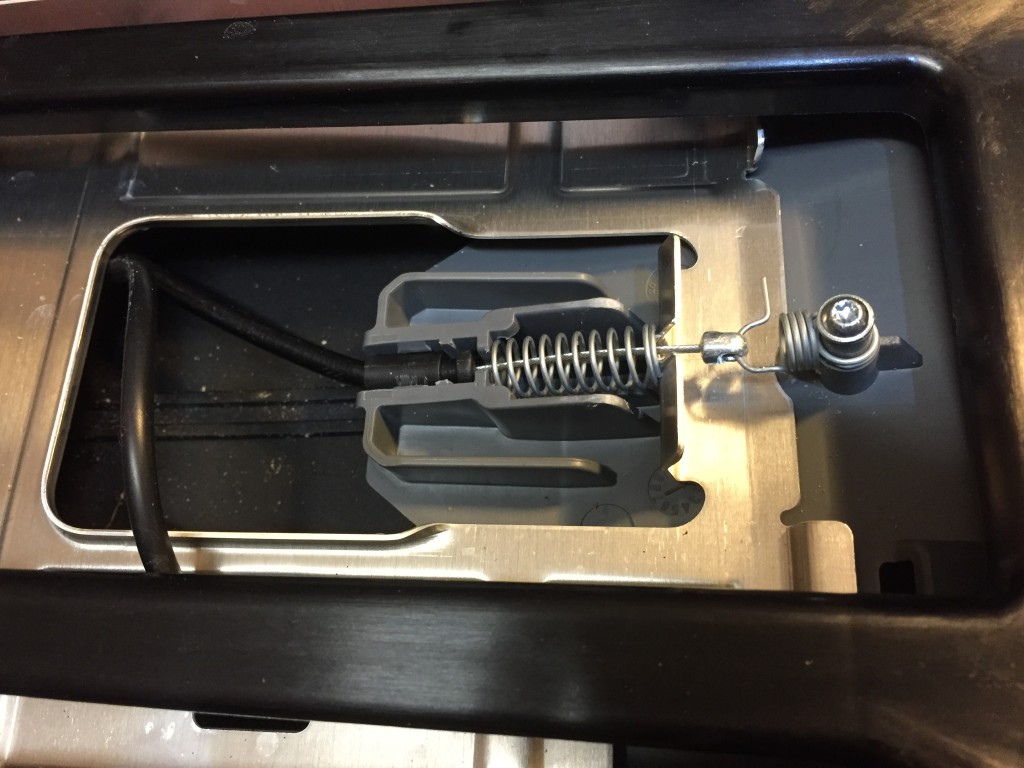

Notice this mechanism:



IMG_2357

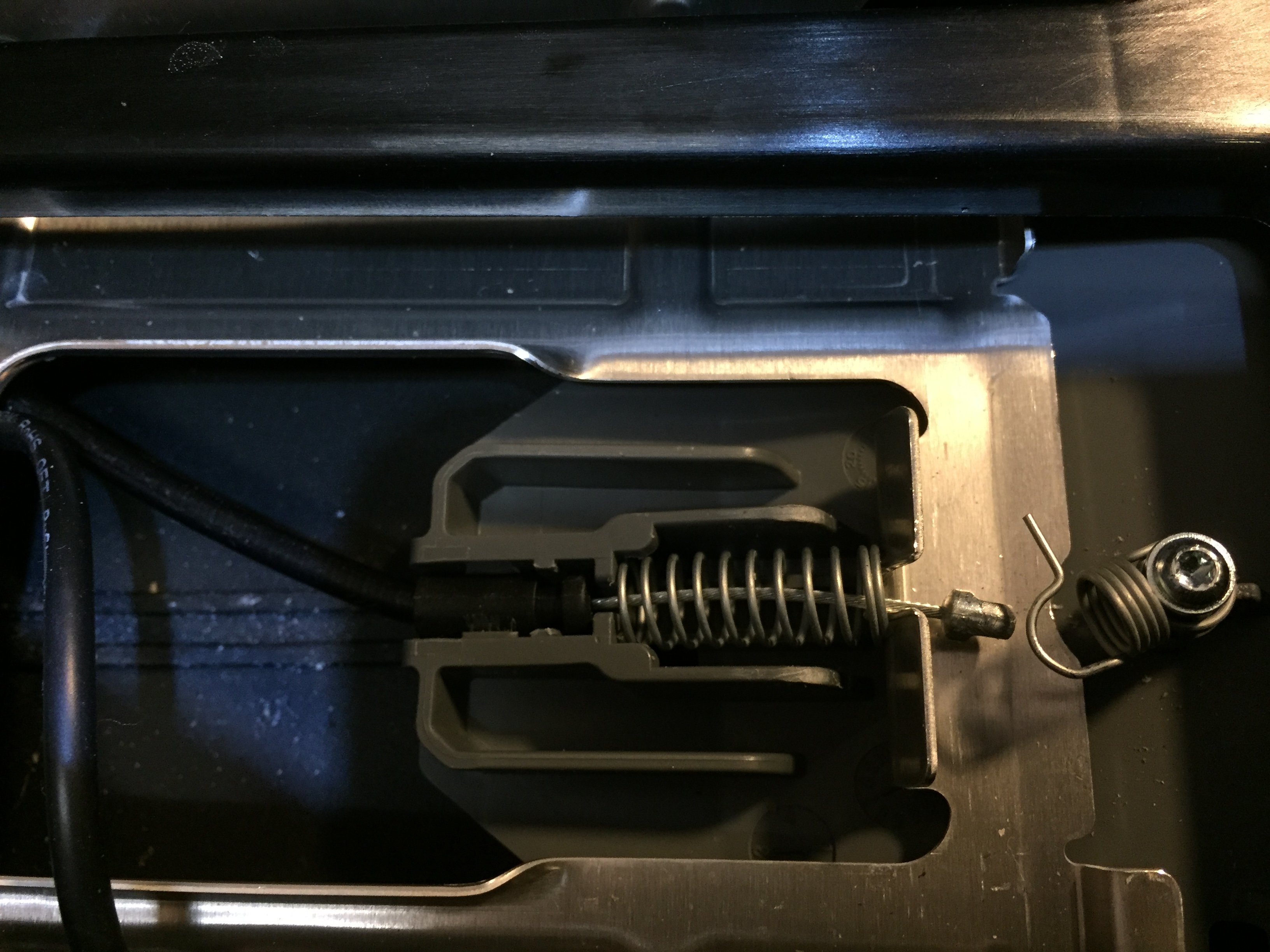

This is the back side of the release mechanism which came loose. It is not under tension. So you can easily pull out the holding wire:



IMG_2358

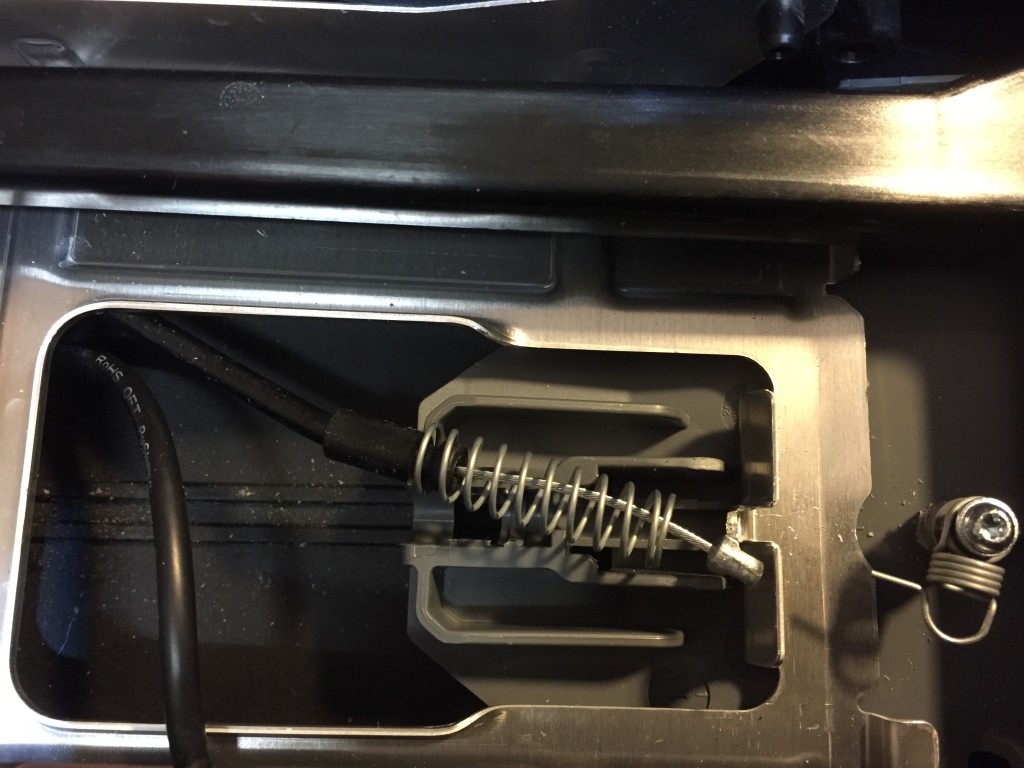

Then, use your screwdriver to pull upwards the plastic cover and release the spring:



IMG_2359

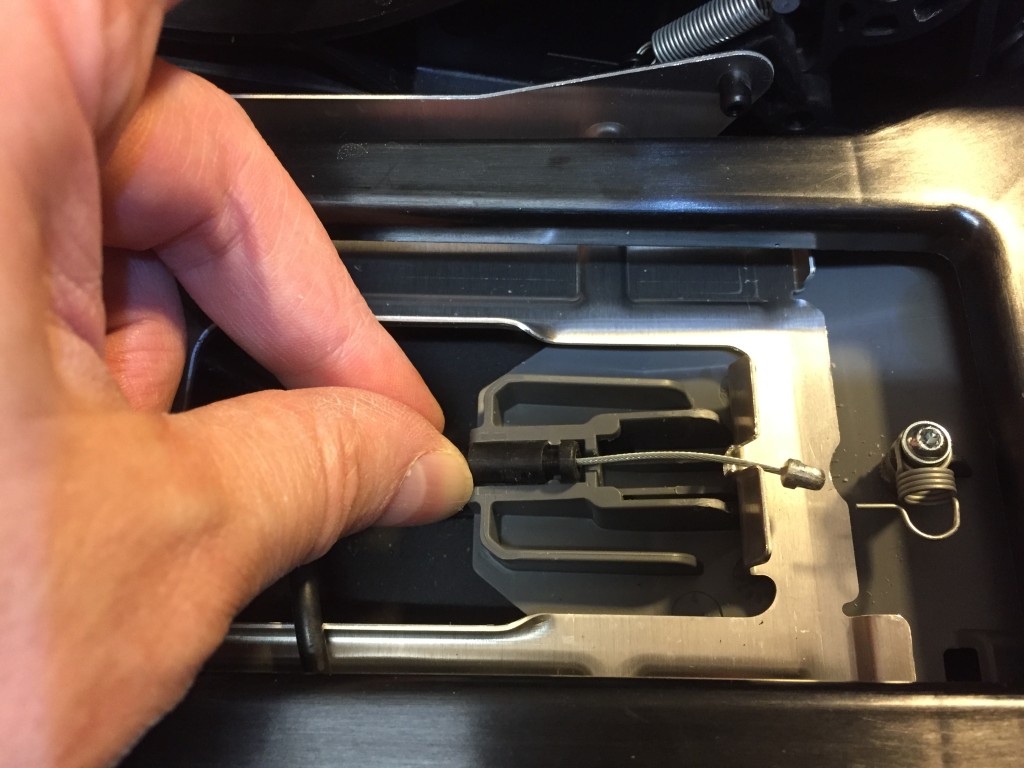

If you new remove the spring, you have won enough room to pull out the opposite side of the wire and re-fix it into where it came loose from. It may take some wiggling, but it is possible without any force. I used a simple rubber band to hold it in place and then push the release handle over it. When it snapped in, the rubber band broke and hence I had it in place. Once done, press the plastic cover (very) firmly back in place with your fingers:



IMG_2360

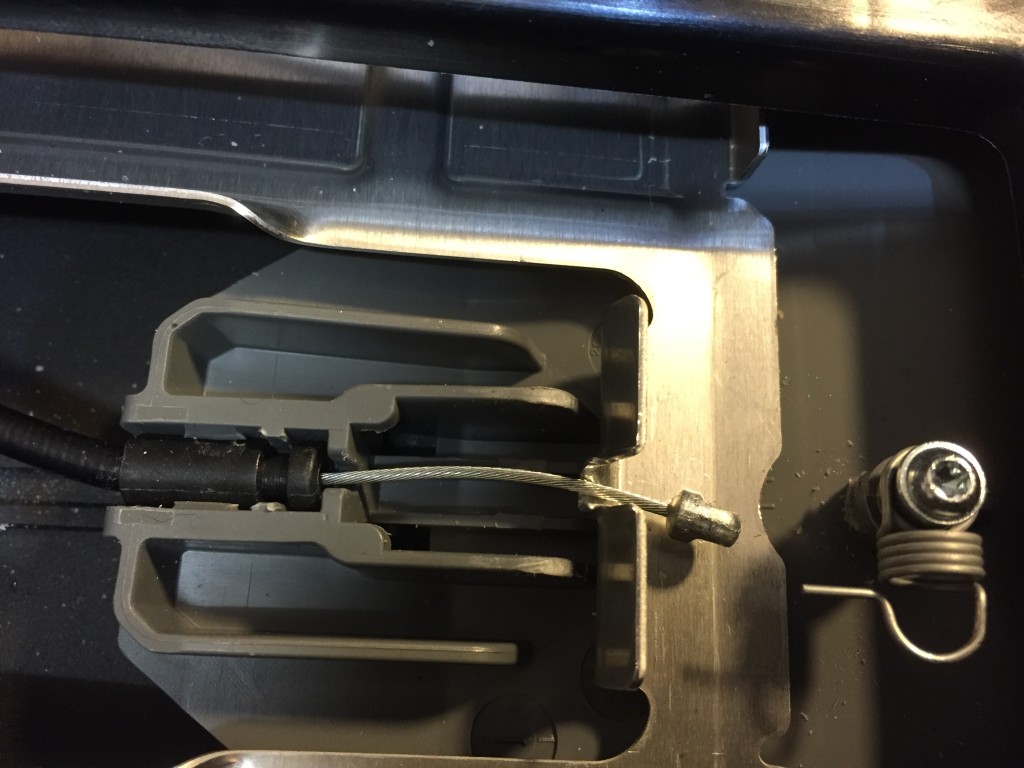

This is about the only time where you need some force. When done, it looks like this:



IMG_2361





Put the spring back in place – use a flathead screw driver if needed. then work your way back. I just replaced the cover over where it should be and slightly hit it with my flat palm to bring it back down in place. Then I fixed the screws, and that was it.

When you know what to do it barely takes 10 minutes.

Hope, this helps…



Comments

This post currently has 13 responses

  • Hi,
    I have broken wires to isofix latch, is it possible to repair them? How does one separate the Base to access the wires? Can you help please?

  • Very nice wiki, and useful information! Thanks! Were you able to dismantle the bottom part as well?
    Thanks!

  • Did you ever venture to dismantle the bottom part? I got a wire that is broken and I cannot figure out how to dismantle the bottom from the top part to access the side isofix rails and its wire. I just managed to remove the 6 screws at the bottom and the covers of the isofix rails.

  • Thanks for uploading this as it was the only source I could find.. I had spotted the two screws but I am not sure if I would have figured out getting the plastic off.

    In my case I needed to tweak the micro switch that detects when the seat is locked in.. It was slightly loose and contact was just able to be lost with the slightest movement of the seat, making it a nightmare to fit without beeping for no reason.

    You have probably saved me breaking mine!
